Configuration

The Siport to Schindler connector synchronizes changed Siport cardholders into Schindler. The connector reads users, cards, profiles, templates, and validity information from Siport and creates, updates, or removes the corresponding cardholder in Schindler.

The synchronization normally runs automatically in the background. Each run only reads changed Siport records since the last successful run.

⚠️ Prerequisites

Before this connector can be used, the Schindler system and the Siemens Siport system must first be configured separately in the application apps section.

The Siport to Schindler connector does not contain the full connection settings for Siport or Schindler itself. Instead, it links two already configured systems:

one existing Schindler integration
one existing Siemens Siport integration

After both integrations have been created and tested, select them in the connector fields Schindler System and Siport System.

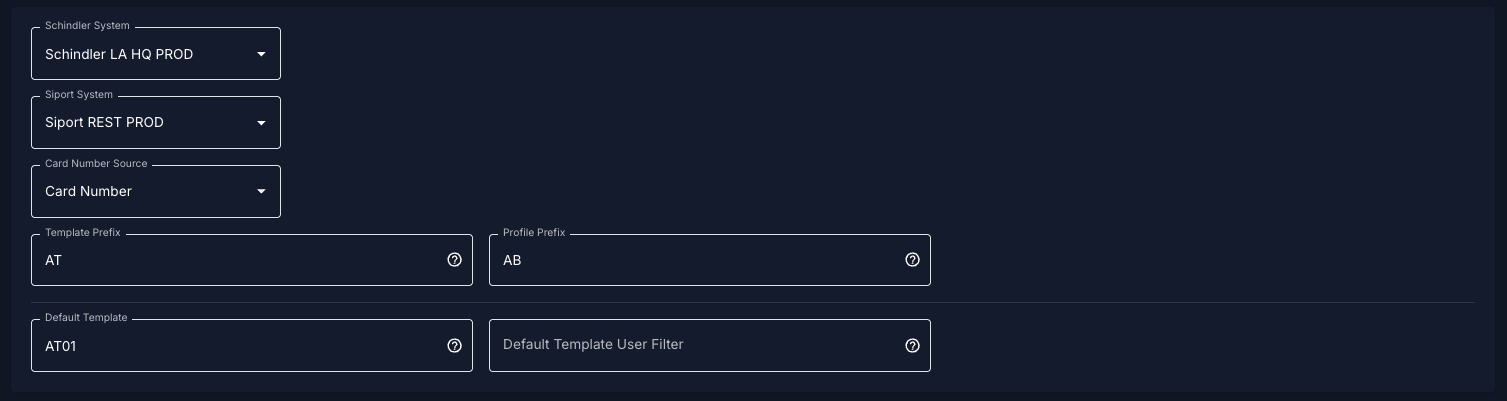

Connect Systems

Schindler System

Select the Schindler access system that should receive the synchronized users.

The selected Schindler system must contain the Schindler REST API configuration, the Schindler templates, the Schindler access profiles, and the credential type used for card identities.

Siport System

Select the Siport system that should be used as the source system.

The selected Siport system must contain the Siport REST API configuration, the correct Siport server timezone, and the cardholders, cards, profiles, and free fields used by the integration.

The Siport server timezone is important because Siport lastChanged filtering uses the local Siport server time.

Card Number Source

This setting defines which Siport card field is used as the Schindler credential.

Option	Meaning
Card Number	Uses the Siport card number.
UID Value	Uses the Siport UID value of the card.

The selected value is used as the Schindler card identity for normal card users.

Example: If Card Number is selected and the Siport card number is 123456, the Schindler user is created or updated using 123456.

Example: If UID Value is selected and the Siport UID is 04AABBCC, the Schindler user is created or updated using 04AABBCC.

Template Prefix

The template prefix defines which Siport profiles should be interpreted as Schindler templates.

Example:

Template Prefix: AT

If a Siport user has a profile called:

AT01

the connector treats AT01 as a Schindler template name.

The template must exist in Schindler with the same name. If the template does not exist in Schindler, it is skipped.

Profile Prefix

The profile prefix defines which Siport profiles should be interpreted as additional Schindler access profiles.

Example:

Profile Prefix: AB

If a Siport user has a profile called:

AB01

the connector tries to assign the matching Schindler access profile.

For Schindler profile matching, the connector uses this format:

Siport profile name - Siport profile description

Example:

AB01 - Main Entrance

The matching access profile must exist in Schindler.

Default Template

The default template is an optional fallback template.

Example:

Default Template: AT01

The default template is added as a template candidate when it applies to the user.

If no template profile from Siport matches the configured template prefix, the default template can still be used to create the user in Schindler.

The default template must exist in Schindler.

Default Template User Filter

The default template user filter limits when the default template applies.

This field uses a regular expression matched against the Siport personnel number.

If this field is empty, the default template applies to all users.

Example:

^EMP.*

This means the default template only applies to users whose personnel number starts with EMP.

Important: This filter only controls the default template. It does not block Siport templates that are assigned directly to the user.

Example:

Default Template: AT05
Default Template User Filter: ^EMP.*

User:

Personnel Number: EXT1001
Siport Template: AT02

Result:

AT05 is not applied because EXT1001 does not match ^EMP.*. AT02 can still be used because it was assigned directly in Siport.

Template Selection Rules

A user can have multiple template candidates.

Template candidates can come from Siport profiles matching the template prefix and from the configured default template, if the default template applies.

If multiple templates are available, the connector sorts the template names alphabetically and uses the highest one.

Example:

AT01
AT03
AT05

Selected Schindler template:

AT05

Because the sorting is alphabetical, use consistent numbering.

Recommended	Avoid
`AT01` `AT02` `AT10`	`AT1` `AT2` `AT10`

Profile Merge Rules

A Schindler template can already contain access profiles.

When the connector selects the final template, it builds the final Schindler profile list in this order:

Profiles from the selected Schindler template.
Profiles from lower-priority assigned templates.
Additional Siport profiles matching the profile prefix.

Duplicate profiles are only added once.

Example configuration:

Template Prefix: AT
Profile Prefix: AB
Default Template: AT05
Default Template User Filter: empty

Siport user profiles:

AT01
AB03

Schindler templates:

AT01 contains profile: Floor 1
AT05 contains profile: Main Entrance

Result:

Selected Schindler template: AT05

Final profiles:

Main Entrance
Floor 1
AB03 - configured description

Required Template Rule

A normal user needs a valid Schindler template.

The template can come from a Siport profile matching the template prefix or from the default template.

If no valid template is found, new users are skipped and existing users may be removed from Schindler.

Additional profile-prefix profiles alone are not enough. They are added only after a valid template has been selected.

Normal Card Users

For normal users, the connector uses the selected card number source to identify the Schindler cardholder.

The connector ignores virtual cards.

If the Siport cardholder and card are active, the connector checks whether the user exists in Schindler. If the user does not exist, it creates the user. If the user exists, it updates the user. The selected template and merged profiles are applied.

If the Siport cardholder or card is locked, the connector removes the corresponding user from Schindler, if it exists.

QR Code Users

A user is handled as a QR code user when the Siport personnel number starts with:

QR

For QR users, the connector reads the QR value from the configured Siport free definition field.

The QR code value is converted to hexadecimal and assigned in Schindler as:

third-party-qr

QR users are identified in Schindler by the Siport personnel number.

If no QR value is found, the user is not created.

Validity Dates

The connector uses the Siport cardholder validity dates:

validFrom
validTo

These dates are converted using the Siport server timezone.

The resulting validity is sent to Schindler.

For QR users, auto-delete is enabled in Schindler.

Last Run / Delta Synchronization

The connector stores the last successful synchronization time in:

Sync Last Run

The value is stored in this format:

yyyyMMddHHmmss

Example:

20260618095310

On the next run, the connector asks Siport only for changed records:

lastChanged >= Sync Last Run

The >= comparison is intentional. It protects against losing records that changed exactly at the boundary time.

This can cause the same user to be processed again, but this is safer than missing a change.

The last run time is stored using the configured Siport server timezone.

Auto Synchronize Credentials

When enabled, the connector runs automatically in the scheduler.

The scheduler checks active access systems regularly and starts the Siport to Schindler process if no sync for the same connector is already running.

Only one sync for the same access system should run at the same time.

Failure Behavior

The connector should only advance Sync Last Run after a successful run.

If Siport authentication fails or Schindler is not reachable, the connector must not update Sync Last Run. This ensures that the same Siport changes are retried during the next run.

Configuration Example

Siport profiles:

AT01
AB03

Connector configuration:

Template Prefix: AT
Profile Prefix: AB
Default Template: AT05
Default Template User Filter: empty
Card Number Source: Card Number

Schindler templates:

AT01
AT05

Schindler profiles:

Profiles from AT05
Profiles from AT01
AB03 - Example Description

Result:

The user is created or updated in Schindler. The selected template is AT05. Profiles from AT05 are applied first. Profiles from AT01 are added. The additional profile AB03 is added. Duplicates are ignored.

Recommended Naming

Use clear and consistent template and profile names.

Recommended template naming:

AT01
AT02
AT03
AT10

Recommended profile naming:

AB01
AB02
AB03

Avoid mixed numbering such as:

AT1
AT2
AT10

Template selection is alphabetical, not numeric.
